Product Brief

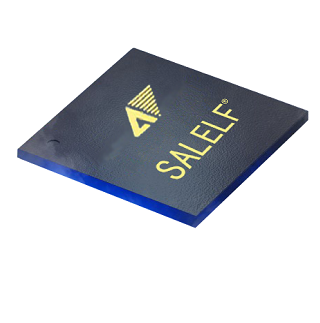

EF3 devices are the third generation of the “ELF” series launched by Anlogic Infotech.

EF3 devices are based on 55 nm low-power technology and feature optimized power consumption and performance, delivering high functionality at low cost. Positioned in the communications, industrial control and server markets, the product supports up to 336 I/Os to meet customer board-level IO expansion application requirements.


Product Table

Find 8 Results
Device DFFs LUTs DistributeRAM eRAM-9K eRAM-Total M18*18 PLL USER IO USER FLASH Package Methods Package Size
中国-九游·会J9官方网站|真人游戏第一品牌:EF3L40CG324B 4800 4800 38K 15 135K 8 2 279 8Mb LFBGA324 15*15
EF3L90CG400B 9280 9280 73K 30 270K 16 2 335 8Mb LFBGA400 17*17
中国-九游·会J9官方网站|真人游戏第一品牌:EF3L90CG324B 9280 9280 73K 30 270K 16 2 279 8Mb LFBGA324 15*15
中国-九游·会J9官方网站|真人游戏第一品牌:EF3L50CG256B 5304 5304 42K 31 324K \ 2 206 8Mb LFBGA256 14*14
中国-九游·会J9官方网站|真人游戏第一品牌:EF3L70CG256B 7952 7952 63K 36 324K \ 2 206 8Mb LFBGA256 14*14
EF3L40CG332B 4800 4800 38K 15 135K 8 2 279 8Mb LFBGA324 17*17
中国-九游·会J9官方网站|真人游戏第一品牌:EF3LA0CG484B 11776 11776 92K 68 612K \ 2 383 8Mb LFBGA484 19x19
中国-九游·会J9官方网站|真人游戏第一品牌:EF3LA0CG642B 11776 11776 92K 68 612k \ 2 475 8Mb LFBGA642 23*23
  • Product Features
  • Application Scenarios
  • Materials Download

Question feedback

You can read about how we handle your personal data, your personal data rights, and how you can contact us in our 中国-九游·会J9官方网站|真人游戏第一品牌:privacy policy.

Sorry, you have not logged in!

We have provided FamilyOverview documents of the serial devices such as EF2\EF3\EG4, which can be downloaded without registration.

Sorry, your permission is insufficient!

If you need to activate permissions, please log in to the member first to complete your personal information, and then send the specific requirements and registered phone number to the following email. Customer service personnel will process it as soon as possible.

Sorry, your permission is insufficient!

Please login to the member first to supplement your personal information. If you need to activate permissions, please send the specific requirements and registered phone number to the following email. Customer service personnel will process it as soon as possible.

We have provided TD4.6.4, TD4.6.5, and TD4.6.6 for the development of EF2EF3EG4 series chip solutions, which can be directly downloaded;
