Product Brief

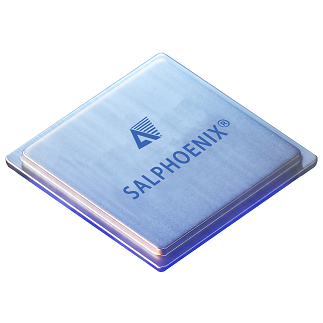

PH1A series FPGA products are one of the "PHOENIX" series launched by Anlogic Infotech. The product offers 60-180K LUTs, high-speed serial I/Os, PCIE hardcores, DDR3/DDR4 memory interfaces and rich IP resources, positioned in the cost-effective programmable logic market; PH1A provides best-in-class transceiver and signal processing functions while maintaining low power consumption. PH1A is capable of meeting the size-, weight-, power- and cost-sensitive markets such as communication infrastructure, and medical, industrial and consumer electronics, providing developers with a better solution.


Product Table

Find 7 Results
Device LUTs DFFs DistributeRAM eRAM-20K eRAM-Total DSP PLL Serdes-Channels Serdes-Rate DDR-Rate DDR-Width MIPI-IO USER IO Package Methods Package Size Sphere Pitch
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A180SFG676 210240 233600 3300K 646 12920K 600 16 8 12.5Gbps 1866Mbps x72 20 396 FCBGA676 27*27 1.0mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A90SBG484 115776 128640 1680K 272 5440K 240 12 4 10.3125Gbps 1066Mbps x40 20 280 LFBGA484 23*23 1.0mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A90SEG324 115776 128640 1680K 272 5440K 240 12 8 6.25Gbps 1066Mbps x16 - 148 LFBGA324 15*15 0.8mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A60GEG324/C 70848 78720 780K 158 3160K 120 12 - - - - - 211 LFBGA324 15*15 0.8mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A90SEG325 115776 128640 1680K 272 5440K 240 12 4 6.25Gbps 1066Mbps x32 20 180 LFBGA325 15*15 0.8mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A400SFG676 417024 463360 5500K 914 18280K 840 20 8 12.5Gbps 1866Mbps x72 \ 400 FCBGA676 27*27 1.0mm
中国-九游·会J9官方网站|真人游戏第一品牌:PH1A400SFG900 417024 463360 5500K 914 18280K 840 20 16 12.5Gbps 1866Mbps x72 \ 500 FCBGA900 31*31 1.0mm
  • Product Features
  • Application Scenarios
  • Materials Download

Product Features

  • High-performance, high-capacity configurable logic modules

    Logic scales from 70,848 to 210,240 LUTs

  • High-performance digital signal processing unit

    Support two-input adders, three-input adders, multipliers, and arithmetic logic units

  • High performance serial transceivers

    Support up to 12.5 Gbps channel rate and multiple protocols

  • Integrated PCIe hardcores

    Support GEN1/2/3, and X1/X2/X4 modes

  • Support DDR3 and DDR4 storage interface

    Support up to 1866 Mbps, x8/x16/x32/x64 bit width

  • SEU error checking and error correction

    Support single-bit error detection and error correction, and support double-bit error detection

  • Dedicated MIPI-IO

    Support 2.5 Gbps, and CSI-RX
